Implementing Coherence and OWSM out-of-process on OSB 12c by David Saes

April 27, 2015 Leave a comment

Introduction

Enterprise Deployment Guide for Oracle SOA Suite states that we should segregate Oracle Web Service Manager (OWSM) and if we plan to use Result Caching heavily with OSB we should segregate Coherence from OSB Managed Server too, but to perform these tasks at WebLogic 12c is quite different than old version 11g. This article describes how to create an OSB domain and segregate (or “out-of-process”) OWSM and Coherence Servers from OSB Managed Servers, our desired domain is covered by the following image:

Tested Environment

Oracle Fusion Middleware 12c (12.1.3.0.0) Infrastructure
Oracle Fusion Middleware 12c (12.1.3.0.0) Service Bus
Oracle JDK 7u75
Linux

Installation Steps

I’m assuming that all Installation steps are already done before, and I’ll not cover them on this article to not be boring, the installation steps are:

(Note: always certify your system meets the Requirements and Supported Platform):

Domain Configuration

Now we already have installed the OSB binaries, we need to configure the domain using the Configuration Wizard, my Oracle Home is /u01/oracle/middleware/fmw1213 and to start the Configuration Wizard we need to go to $ORACLE_HOME/oracle_common/common/bin and execute:

$ ./config.sh

Choose “Create a new domain” and choose the Domain Location as you prefer (in my case it will be /u01/oracle/domains/OSBDomain) and Click in Next button:

Select the Template “Oracle Service Bus”, and the templates: “WebLogic Advanced Web Services for JAX-RPC Extension”, “ODSI XQuery 2004 Components”, “Oracle Enterprise Manager”, “Oracle WSM Policy Manager”, “Oracle JRF” and “WebLogic Coherence Cluster Extension” will be selected too, then Click in Next button:

Choose the Application Location as you prefer (in my case it will be /u01/oracle/domains/applications/OSBDomain) and Click in Next button:

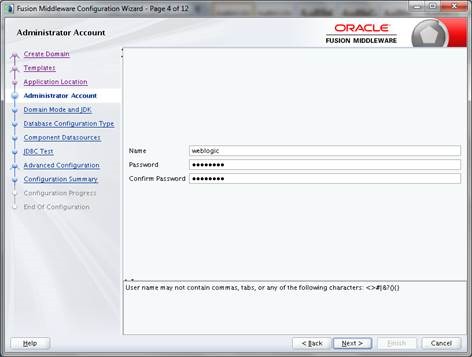

Define the Administrator Account User and password (in my case it will be weblogic for User and welcome1 for Password) and Click in Next button:

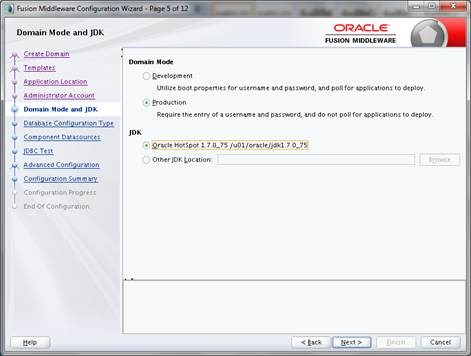

Select “Production” on Domain Mode and Choose the JDK appropriate and Click in Next button:

Enter your Database connection and RCU data then click in “Get RCU Configuration”, after we verify everything is OK click in Next button:

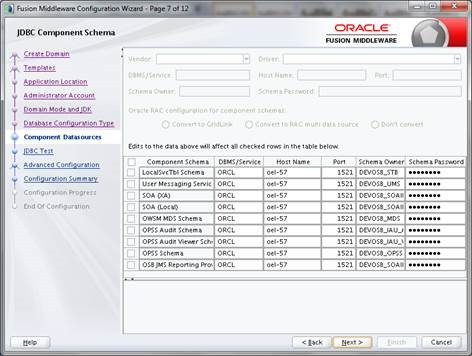

On Component Datasources click in Next button:

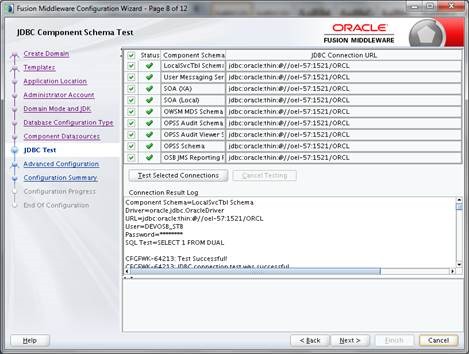

On JDBC Test verify if everything is OK and click in Next button:

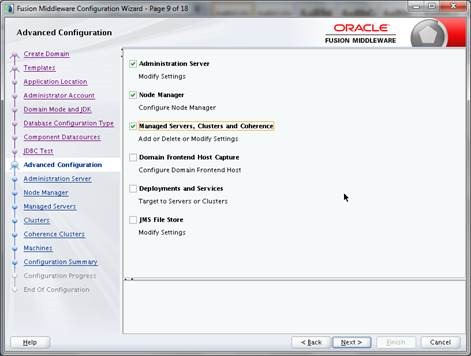

Select “Administration Server”, “Node Manager”, “Managed Servers, Clusters and Coherence” and Click in Next button:

On Administration Server enter the “Server Name” and “Listen Port” as you prefer, on “Listen Address” as EDG states use a virtual host (in my case it will be AdminServer for Server Name, admin-vip for Listen Address and 7001 for Listen Port), on “Server Groups” leave “Unspecified” and click in Next button:

Choose the “Node Manager Type” and “Node Manager Credentials” as you prefer (in my case it will be Per Domain Default Location for Node Manager Type, nmuser for Username and welcome1 for Password) and click in Next button:

On Managed Servers screen, we will change the Server Group for OSB Server from “OSB-MGD-SVRS-COMBINED” to “OSB-MGD-SVRS-ONLY”, and Click in button to add our OWSM Managed Server then we will associate the Server Groups: “JFR-MAN-SVR” and “WSMPM-MAN-SVR” for it, then click in Next button:

Create two new cluster as following, you can adapt the names to your standards (Note: Always set Frontend Host to OSB)

Cluster Name	Cluster Address	Frontend Host	Frontend HTTP Port	Frontend HTTPS
cluster_osb	osb-node-01-vip:7010	osb-dev.internal	80	443
cluster_owsm	owsm-node-01-vip:7020

Click in Next button:

Associate each Server on your respective cluster then click in Next button:

Enter the name for Coherence Cluster and an Unicast Port Listen (in my case it will be CoherenceCluster for Cluster Name and 0 for Unicast Listen Port), if you leave port 0 it will create an offset for the Managed Servers, then click in Next button:

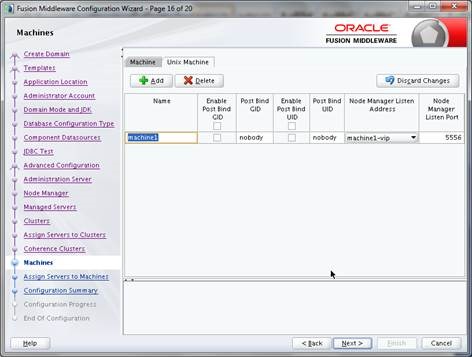

Enter the Machine information (in my case it will be machine1 for Name, machine1-vip for Node Manager Listen Address and 5556 for Node Manager Listen Port) then click in Next button:

Associate the Managed Servers to Machine created then click in Next button:

Click in Create button on Configuration Summary:

After the Domain was created, click in Next button:

Click in Finish button:

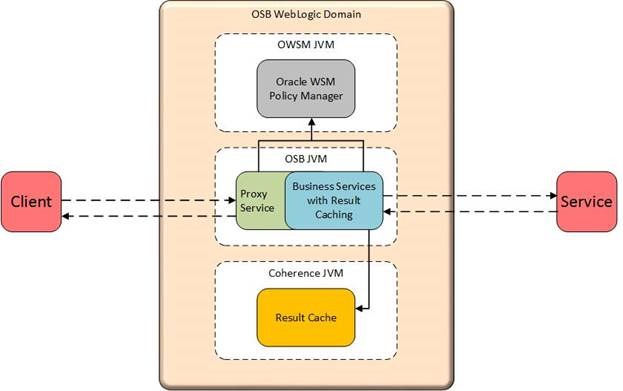

Here we’ve already segregated the OSB and OWSM in two different Managed Servers.

Starting OSB domain

Now we start our OSB domain created in previous step, my Domain Location or $DOMAIN_HOME is /u01/oracle/domains/OSBDomain, and to start the Admin Server we need to go $DOMAIN_HOME, execute startWebLogic.sh shell script, when asked enter the admin user name and password and wait the process to be in RUNNING state:

$ ./startWebLogic.sh

JAVA Memory arguments: -Xms1024m -Xmx2048m -XX:PermSize=512m -XX:MaxPermSize=1024m

CLASSPATH=/u01/oracle/middleware/fmw1213/oracle_common/modules/features/com.oracle.db.jdbc7-dms.jar:/u01/oracle/middleware/fmw1213/oracle_common/modules/odsi_xquery2004_12.1.3/odsi.xquery.modules_12.1.3.0.jar:/u01/oracle/jdk1.7.0_75/lib/tools.jar:/u01/oracle/middleware/fmw1213/wlserver/server/lib/weblogic_sp.jar:/u01/oracle/middleware/fmw1213/wlserver/server/lib/weblogic.jar:/u01/oracle/middleware/fmw1213/wlserver/../oracle_common/modules/net.sf.antcontrib_1.1.0.0_1-0b3/lib/ant-contrib.jar:/u01/oracle/middleware/fmw1213/wlserver/modules/features/oracle.wls.common.nodemanager_2.0.0.0.jar:/u01/oracle/middleware/fmw1213/soa/soa/modules/oracle.soa.common.adapters_11.1.1/oracle.soa.common.adapters.jar:/u01/oracle/middleware/fmw1213/soa/soa/modules/oracle.cloud.adapter_12.1.3/oracle.cloud.adapter.jar:/u01/oracle/middleware/fmw1213/osb/lib/servicebus-common.jar:/u01/oracle/middleware/fmw1213/oracle_common/communications/modules/config-12.1.3.jar:/u01/oracle/middleware/fmw1213/oracle_common/communications/modules/userprefs-config-12.1.3.jar:/u01/oracle/middleware/fmw1213/oracle_common/modules/internal/features/jrf_wlsFmw_oracle.jrf.wls.classpath_12.1.3.jar:/u01/oracle/middleware/fmw1213/osb/lib/version.jar:/u01/oracle/middleware/fmw1213/osb/lib/servicebus.jar:/u01/oracle/domains/OSBDomain/config/osb:/u01/oracle/middleware/fmw1213/wlserver/../oracle_common/modules/com.oracle.cie.config-wls-online_8.1.0.0.jar::/u01/oracle/middleware/fmw1213/wlserver/common/derby/lib/derbynet.jar:/u01/oracle/middleware/fmw1213/wlserver/common/derby/lib/derbyclient.jar:/u01/oracle/middleware/fmw1213/wlserver/common/derby/lib/derby.jar:/u01/oracle/middleware/fmw1213/wlserver/server/lib/xqrl.jar

PATH=/u01/oracle/middleware/fmw1213/wlserver/server/bin:/u01/oracle/middleware/fmw1213/wlserver/../oracle_common/modules/org.apache.ant_1.9.2/bin:/u01/oracle/jdk1.7.0_75/jre/bin:/u01/oracle/jdk1.7.0_75/bin:/usr/lib64/qt-3.3/bin:/usr/local/bin:/bin:/usr/bin:/usr/local/sbin:/usr/sbin:/sbin:/home/oracle/bin

***************************************************

* To start WebLogic Server, use a username and *

* password assigned to an admin-level user. For *

* server administration, use the WebLogic Server *

* console at http://hostname:port/console *

***************************************************

starting weblogic with Java version:

java version "1.7.0_75"

Java(TM) SE Runtime Environment (build 1.7.0_75-b13)

Java HotSpot(TM) 64-Bit Server VM (build 24.75-b04, mixed mode)

Starting WLS with line:

/u01/oracle/jdk1.7.0_75/bin/java -server -Xms1024m -Xmx2048m -XX:PermSize=512m -XX:MaxPermSize=1024m -Dweblogic.Name=AdminServer -Djava.security.policy=/u01/oracle/middleware/fmw1213/wlserver/server/lib/weblogic.policy -Dweblogic.ProductionModeEnabled=true -Djava.endorsed.dirs=/u01/oracle/jdk1.7.0_75/jre/lib/endorsed:/u01/oracle/middleware/fmw1213/wlserver/../oracle_common/modules/endorsed -Djava.protocol.handler.pkgs=oracle.mds.net.protocol -Dopss.version=12.1.3 -Digf.arisidbeans.carmlloc=/u01/oracle/domains/OSBDomain/config/fmwconfig/carml -Digf.arisidstack.home=/u01/oracle/domains/OSBDomain/config/fmwconfig/arisidprovider -Doracle.security.jps.config=/u01/oracle/domains/OSBDomain/config/fmwconfig/jps-config.xml -Doracle.deployed.app.dir=/u01/oracle/domains/OSBDomain/servers/AdminServer/tmp/_WL_user -Doracle.deployed.app.ext=/- -Dweblogic.alternateTypesDirectory=/u01/oracle/middleware/fmw1213/oracle_common/modules/oracle.ossoiap_12.1.3,/u01/oracle/middleware/fmw1213/oracle_common/modules/oracle.oamprovider_12.1.3,/u01/oracle/middleware/fmw1213/oracle_common/modules/oracle.jps_12.1.3 -Dweblogic.jdbc.remoteEnabled=true -Dcommon.components.home=/u01/oracle/middleware/fmw1213/oracle_common -Djrf.version=12.1.3 -Dorg.apache.commons.logging.Log=org.apache.commons.logging.impl.Jdk14Logger -Ddomain.home=/u01/oracle/domains/OSBDomain -Doracle.server.config.dir=/u01/oracle/domains/OSBDomain/config/fmwconfig/servers/AdminServer -Doracle.domain.config.dir=/u01/oracle/domains/OSBDomain/config/fmwconfig -Doracle.mds.filestore.preferred= -Dadf.version=12.1.3 -Doracle.osb.home=/u01/oracle/middleware/fmw1213/osb -da -Dwls.home=/u01/oracle/middleware/fmw1213/wlserver/server -Dweblogic.home=/u01/oracle/middleware/fmw1213/wlserver/server -Djavax.management.builder.initial=weblogic.management.jmx.mbeanserver.WLSMBeanServerBuilder -Dem.oracle.home=/u01/oracle/middleware/fmw1213/em -DINSTANCE_HOME=/u01/oracle/domains/OSBDomain -Djava.awt.headless=true -Doracle.sysman.util.logging.mode=dual_mode -Dums.oracle.home=/u01/oracle/middleware/fmw1213/oracle_common -Djava.util.logging.manager=oracle.core.ojdl.logging.ODLLogManager -Dweblogic.utils.cmm.lowertier.ServiceDisabled=true weblogic.Server

Enter username to boot WebLogic server:weblogic

Enter password to boot WebLogic server:

Mar 28, 2015 1:00:45 AM oracle.security.jps.JpsStartup start

INFO: Jps initializing.

Mar 28, 2015 1:00:52 AM org.hibernate.validator.util.Version <clinit>

INFO: Hibernate Validator 12.1.3.0.0

Mar 28, 2015 1:00:52 AM org.hibernate.validator.engine.resolver.DefaultTraversableResolver detectJPA

INFO: Instantiated an instance of org.hibernate.validator.engine.resolver.JPATraversableResolver.

…

Note: If during the Admin startup you see the stack like below, it is because the Admin Server is trying to reach wsm-pm during startup. As wsm-pm is targeted only to Managed Servers which have not been started yet, this must fail.

The connection to wsm-pm will be retried, and will be established once wsm-pm is available in the domain. (more details see the MOS Note: 1948727.1)

<Mar 28, 2015 1:03:03 AM BRT> <Warning> <oracle.wsm.resources.policymanager> <WSM-02141> <Unable to connect to the policy access service.

oracle.wsm.policymanager.PolicyManagerException: WSM-02141 : Unable to connect to the policy access service.

at oracle.wsm.policymanager.BeanFactory.getInitialContext(BeanFactory.java:810)

at oracle.wsm.policymanager.BeanFactory.getJndiObj(BeanFactory.java:844)

at oracle.wsm.policymanager.BeanFactory.lookupJndiObj(BeanFactory.java:1175)

at oracle.wsm.policymanager.BeanFactory.getUsageTrackerBeanEJB(BeanFactory.java:1019)

at oracle.wsm.policymanager.BeanFactory.getBeanEJB(BeanFactory.java:544)

at oracle.wsm.policymanager.BeanFactory.getBean(BeanFactory.java:451)

at oracle.wsm.config.ConfigurationManager$2.run(ConfigurationManager.java:1589)

at java.security.AccessController.doPrivileged(Native Method)

at oracle.wsm.config.ConfigurationManager.getBean(ConfigurationManager.java:1585)

at oracle.wsm.config.ConfigurationManager.access$1400(ConfigurationManager.java:169)

at oracle.wsm.config.ConfigurationManager$ContextualAccessor.configureBean(ConfigurationManager.java:600)

at oracle.wsm.config.ConfigurationManager$ContextualAccessor.configure(ConfigurationManager.java:541)

at oracle.wsm.config.ConfigurationManager$ContextualAccessor.<init>(ConfigurationManager.java:487)

at oracle.wsm.config.ConfigurationManager$ContextualAccessor.<init>(ConfigurationManager.java:375)

at oracle.wsm.config.ConfigurationManager.initializeAccessors(ConfigurationManager.java:1902)

at oracle.wsm.config.ConfigurationManager.reset(ConfigurationManager.java:2251)

at oracle.wsm.config.ConfigurationManager.getRepositoryAccessor(ConfigurationManager.java:1803)

at oracle.wsm.policyaccess.PolicyAccessPoint$1.run(PolicyAccessPoint.java:333)

at oracle.wsm.policyaccess.PolicyAccessPoint$1.run(PolicyAccessPoint.java:330)

at java.security.AccessController.doPrivileged(Native Method)

…

at org.jvnet.hk2.internal.ServiceHandleImpl.getService(ServiceHandleImpl.java:98)

at org.jvnet.hk2.internal.ServiceHandleImpl.getService(ServiceHandleImpl.java:87)

at org.glassfish.hk2.runlevel.internal.CurrentTaskFuture$QueueRunner.oneJob(CurrentTaskFuture.java:1162)

at org.glassfish.hk2.runlevel.internal.CurrentTaskFuture$QueueRunner.run(CurrentTaskFuture.java:1147)

at weblogic.work.SelfTuningWorkManagerImpl$WorkAdapterImpl.run(SelfTuningWorkManagerImpl.java:548)

at weblogic.work.ExecuteThread.execute(ExecuteThread.java:311)

at weblogic.work.ExecuteThread.run(ExecuteThread.java:263)

Caused By: javax.naming.CommunicationException: t3://owsm-node-01-vip:7020: Destination 192.168.56.102, 7020 unreachable; nested exception is:

java.net.ConnectException: Connection refused; No available router to destination]

at weblogic.jndi.internal.ExceptionTranslator.toNamingException(ExceptionTranslator.java:40)

at weblogic.jndi.WLInitialContextFactoryDelegate.toNamingException(WLInitialContextFactoryDelegate.java:808)

at weblogic.jndi.WLInitialContextFactoryDelegate.getInitialContext(WLInitialContextFactoryDelegate.java:365)

at weblogic.jndi.Environment.getContext(Environment.java:319)

Creating Coherence Managed Server

Now we need to create our WebLogic Cluster and WebLogic Managed Server to keep our Coherence data from OSB Resulting Cache, this process is very different than the configuration on OSB 11g, in order you need to follow this steps:

Create a file named createAndDeployCoherence.py and paste the following text:

## Variables

username=’weblogic’

password=’welcome1′

domainURI=’t3://admin-vip:7001′

ClusterWLSCoherence_Name=’cluster_coherence’

ManagedWLSCoherence_Name=’coherence_server1′

ListenAddressCoherence=’coherence-node-01-vip’

PortCoherence=7030

ClusterCoherence=’CoherenceCluster’

MachineCoherence=’machine1′

OracleHome=’/u01/oracle/middleware/fmw1213/osb’

## End Variables

connect(username,password,domainURI);

edit();

startEdit();

#Create Cluster

cd(‘/’)

cmo.createCluster(ClusterWLSCoherence_Name)

cd(‘/Clusters/’+ClusterWLSCoherence_Name)

cmo.setClusterMessagingMode(‘unicast’)

#Create Server

cd(‘/’)

cmo.createServer(ManagedWLSCoherence_Name)

cd(‘/Servers/’+ManagedWLSCoherence_Name)

cmo.setListenAddress(ListenAddressCoherence)

cmo.setListenPort(PortCoherence)

cmo.setCluster(getMBean(‘/Clusters/’+ClusterWLSCoherence_Name))

cmo.setMachine(getMBean(‘/Machines/’+MachineCoherence))

#Disable SSL

cd(‘/Servers/’+ManagedWLSCoherence_Name+’/SSL/’+ManagedWLSCoherence_Name)

cmo.setEnabled(false)

#Add to Coherence Cluster

cd(‘/Servers/’+ManagedWLSCoherence_Name)

cmo.setCoherenceClusterSystemResource(getMBean(‘/CoherenceClusterSystemResources/’+ClusterCoherence))

cd(‘/CoherenceClusterSystemResources/’+ClusterCoherence)

cmo.addTarget(getMBean(‘/Servers/’+ManagedWLSCoherence_Name))

cd(‘/Clusters/’+ClusterWLSCoherence_Name)

cmo.setCoherenceClusterSystemResource(getMBean(‘/CoherenceClusterSystemResources/’+ClusterCoherence))

cd(‘/CoherenceClusterSystemResources/’+ClusterCoherence)

cmo.addTarget(getMBean(‘/Clusters/’+ClusterWLSCoherence_Name))

#Deploy resultcache

progress=deploy(‘resultcache’,OracleHome+’/lib/apps/resultcache.gar’,ClusterWLSCoherence_Name,block=’true’,upload=’true’)

progress.printStatus()

print ‘Coherence Server has been configured’

save();

activate();

disconnect();

exit();

Modify the script variables according to your installation settings. The variables are:

username – The Admin username created for the Domain

password – The Admin password created for the Domain

domainURI – The Url for your Admin Server

ClusterWLSCoherence_Name – The new name for WebLogic Cluster to create for the Coherence Managed Servers

ManagedWLSCoherence_Name – The new name for Coherence Managed Server

ListenAddressCoherence – The virtual host for the new Coherence Managed Server

PortCoherence – The port for the new Coherence Managed Server

ClusterCoherence – The Coherence created to the new Coherence Managed Servers

MachineCoherence – The Machine created to managed the new Coherence Managed Servers

OracleHome – Oracle Service Bus installation directory

In another SSH session run wlst.sh shell script asking our createAndDeployCoherence.py script created previously, the wlst.sh in my case resides on /u01/oracle/middleware/fmw1213/oracle_common/common/bin/wlst.sh:

$ /u01/oracle/middleware/fmw1213/oracle_common/common/bin/wlst.sh createAndDeployCoherence.py

Initializing WebLogic Scripting Tool (WLST) …

Welcome to WebLogic Server Administration Scripting Shell

Type help() for help on available commands

Connecting to t3://admin-vip:7001 with userid weblogic …

Successfully connected to Admin Server "AdminServer" that belongs to domain "OSBDomain".

Warning: An insecure protocol was used to connect to the

server. To ensure on-the-wire security, the SSL port or

Admin port should be used instead.

Location changed to edit tree. This is a writable tree with

DomainMBean as the root. To make changes you will need to start

an edit session via startEdit().

For more help, use help(‘edit’)

Starting an edit session …

Started edit session, please be sure to save and activate your

changes once you are done.

Deploying application from /u01/oracle/middleware/fmw1213/osb/lib/apps/resultcache.gar to targets cluster_coherence (upload=true) …

You have an edit session in progress, hence WLST will not

block for your deployment to complete.

Started the Deployment of Application. Please refer to the returned WLSTProgress object or variable LAST to track the status.

Current Status of your Deployment:

Deployment command type: deploy

Deployment State : failed

Deployment Message : weblogic.deploy.beans.factory.InvalidTargetException: cluster_coherence

Coherence Server has been configured

Saving all your changes …

Saved all your changes successfully.

Activating all your changes, this may take a while …

The edit lock associated with this edit session is released

once the activation is completed.

Activation completed

Disconnected from weblogic server: AdminServer

Exiting WebLogic Scripting Tool.

Log into WebLogic console: http://admin-vip:7001/console

Expand Environment in the left menu and select Servers

i) Click on server osb_server1 and go to Server Start tab on Arguments, add the following parameters and Save your configuration:

-DOSB.coherence.cluster=CoherenceCluster -Dtangosol.coherence.distributed.localstorage=false

ii) Click on server owsm_server1 and go to Server Start tab on Arguments, add the following parameters and Save your configuration:

-DOSB.coherence.cluster=CoherenceCluster -Dtangosol.coherence.distributed.localstorage=false

iii) Click on server coherence_server1 and go to Server Start tab on Arguments, add the following parameters and Save your configuration:

-DOSB.coherence.cluster=CoherenceCluster

Start All Managed Servers

Conclusion

Now we have an OSB domain configured using the best practices that EDG says and also we can use the best that Oracle Fusion Middleware 12c can deliver.

References

https://docs.oracle.com/middleware/1213/soasuite/SOEDG/toc.htm

https://docs.oracle.com/middleware/1213/osb/develop/osb-business-services.htm#OSBDV2232

http://www.oracle.com/technetwork/articles/soa/bus-coherence-caching-421276.html

https://blogs.oracle.com/MarkSmith/entry/osb_and_coherence_integration_1

SOA & BPM Partner Community

For regular information on Oracle SOA Suite become a member in the SOA & BPM Partner Community for registration please visit www.oracle.com/goto/emea/soa (OPN account required) If you need support with your account please contact the Oracle Partner Business Center.

Blog Twitter LinkedIn Facebook Wiki

Technorati Tags: David Saes,OSB,SOA Suite 12c,SOA Community,Oracle SOA,Oracle BPM,OPN,Jürgen Kress,Coherence

Filed under SOA Tagged with David Saes, Jürgen Kress, OPN, Oracle BPM, Oracle SOA, OSB, soa community, SOA Suite 12c

About Jürgen Kress
As a middleware expert Jürgen works at Oracle EMEA Alliances and Channels, responsible for Oracle’s EMEA Fusion Middleware partner business. He is the founder of the Oracle SOA & BPM and the WebLogic Partner Communities and the global Oracle Partner Advisory Councils. With more than 5000 members from all over the world the Middleware Partner Community is the most successful and active community at Oracle. Jürgen manages the community with monthly newsletters, webcasts and conferences. He hosts his annual Fusion Middleware Partner Community Forums and the Fusion Middleware Summer Camps, where more than 200 partners get product updates, roadmap insights and hands-on trainings. Supplemented by many web 2.0 tools like twitter, discussion forums, online communities, blogs and wikis. For the SOA & Cloud Symposium by Thomas Erl, Jürgen is a member of the steering board. He is also a frequent speaker at conferences like the SOA & BPM Integration Days, JAX, UKOUG, OUGN, or OOP.

PaaS Community Blog

Implementing Coherence and OWSM out-of-process on OSB 12c by David Saes

Leave a comment Cancel reply

Subscribe to our newsletters

SOA Community @ Twitter

Blogs from the Community

Facebook PaaS Community

Top Posts & Pages

Blog RSS feed

Email Subscription

The views expressed on this blog are my own and do not necessarily reflect the views of Oracle.

SOA Community RSS feed

Subscribe to Blog via Email

PaaS Community Blog

Implementing Coherence and OWSM out-of-process on OSB 12c by David Saes

Rate this:

Share this:

Leave a comment Cancel reply

Subscribe to our newsletters

SOA Community @ Twitter

Blogs from the Community

Facebook PaaS Community

Top Posts & Pages

Blog RSS feed

Email Subscription

The views expressed on this blog are my own and do not necessarily reflect the views of Oracle.

SOA Community RSS feed

Subscribe to Blog via Email
