The Curious Case of Missing Port Type in Oracle PCS by Arun Pareek

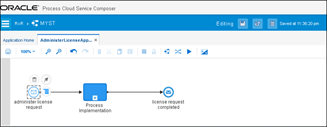

I was recently working on a simple process in PCS for a license approval flow. Given the purists that I am, I began by defining definitions for the various message based activities used in the process flow. The process was an asynchronous process with a few intermediate events. A simplified snippet is shown here for visualization.

In order to implement the above process, I created a service definition (WSDL) with the following schematic. As you can notice, there is a portType for accepting requests into the process (fc.myst.bp.TestDrive) and a callback portType for sending messages out of the process (fc.myst.bp.TestDrive.CallBack). Each of the portTypes have operations for catch and throw messages respectively.

Creating a service definition is considered a best practice as it will not lead to multiple definitions created by the process when generating interfaces from message based implementations. So instead of using “Define Interface” we tend to use “Use Interface“. Read the complete article here
