No More Hidden SOA Performance Problems by Kevin King



clip_image002For anyone who has done performance and load testing in Oracle SOA suite, you know it can be frustrating and time consuming. However, our lives have just gotten much easier! Originally, quite a bit of manual work was needed to find or calculate how long composites took, what the problematic components were, and why instances just took too long. Fortunately, Oracle has introduced a new monitoring tool, Integration Workload Statistics (IWS). This tool creates a report very similar to an AWR report, but focuses on the SOA infrastructure. This feature was released with the new 12.2.1 version of SOA.

Integration Workload Statistics

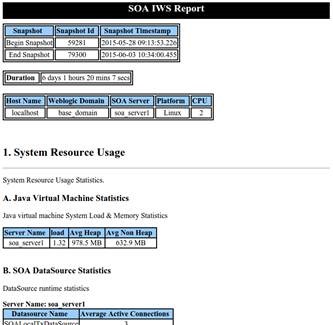

clip_image004The IWS report is intended for reactive monitoring of your system. Enterprise Manager provides a few different tools for monitoring real-time performance and other metrics, however IWS was introduced to post-process poorly performing periods. Running a report over a one hour period where performance is a constant issue allows you to see what components are causing delays. The report details out statistics on components, composites, processes, adapters, endpoints, queues and more!

IWS works by taking periodic, configurable snapshots of server metrics. These metrics are stored to the database and are available for reporting. The reports are generated based on a start and end time and further filtering can be done by server, partition, and even specific composites. Oracle has provided an easy way to view this data with a generated HTML report and they also provide a CSV file, or XML file with the data requested.

The report (assuming FINEST level collection) consists of:

Performance by using patterns in service implementations by Maarten Smeets

clip_image001



Performance in service oriented environments is often an issue. This is usually caused by a combination of infrastructure, configuration and service efficiency. In this blog article I provide several suggestions to improve performance by using patterns in service implementations. The patterns are described globally since implementations can differ across specific use cases. Also I provide some suggestions on things to consider when implementing such a pattern. They are technology independent however the technology does of course play a role in the implementation options you have. This blog article was inspired by a session at AMIS by Lucas Jellema and additionally flavored by personal experience.
Patterns

Asynchronous services

Suppose a synchronous call is made and the system takes a while to process the information. In the mean time the end-user might be waiting for the processing to be completed while the end-user might not (immediately) be interested in the response. Why not make the process asynchronous?

Making a process asynchronous has some drawbacks. The result of the processing of the request will not be available immediately in the front- and back-end so you cannot use this information yet and often you do not know when (and if) the information will become available. If something goes wrong during processing, who will be informed to take measures? (How) does the back-end inform the front-end when it’s done? You can think of server push mechanisms.

Claim-check

This is of course a famous pattern. The claim-check pattern is often used when large objects are used such as large binary files, which you do not want to pull through your entire middleware layer. Often the data is labelled and saved somewhere. The middleware can get a reference to the data. This reference can be send to the place it needs to be and the data can be fetched and processed there.

Set processing

Service calls are expensive since they often traverse several layers of hard- and software. For example I need to fetch data on a lot of persons and I have a service to fetch me person information. I can call this service for every individual person. This can mean a Service Bus instance, a SOA composite instance, a SOA component instance,a database adapter instance, a database connection and fetching of a single item all the way back (not even talking about hard- and software load-balancers). Every instance and connection (e.g. HTTP, database) takes some time. If you can minimize the instances and connections, you obviously can gain a lot of performance. How to do this is more easy than it might seem. Just fetch more than one person in a single request. Read the complete article here.

SOA & BPM Partner Community

For regular information on Oracle SOA Suite become a member in the SOA & BPM Partner Community for registration please visit www.oracle.com/goto/emea/soa (OPN account required) If you need support with your account please contact the Oracle Partner Business Center.

Blog Twitter LinkedIn image[7][2][2][2] Facebook clip_image002[8][4][2][2][2] Wiki

Tuning the Purging Strategy; Oracle SOA Suite Metadata Repository Performance Management by Martijn van der Kamp



clip_image002My colleague, Paul Wever, wrote an excellent blog about turning the MDS to increase performance. Purging is something we do at almost all our customers. Paul provides excellent tips, tricks and insights to increase the performance.
In my job as system administrator/DBA, projects related to Oracle’s SOA Suite I put a lot of emphasis on configuration of the environment, like the OS, the Oracle database, WebLogic, OSB, and other products. Part of the Oracle SOA Suite is the Oracle Metadata Repository, where all metadata and run-time data of applications is stored. This repository is often forgotten in performance management, but deserves special attention when dealing with performance improvements.
This blog is part of a series of blogs around Oracle SOA Suite Metadata Repository Performance Management. In this blog we will show how a performance gain of factor more than 100 was achieved while purging the Metadata Repository.
Terminology
Oracle Metadata Repository
Oracle Metadata Repository is an Oracle database that contains additional schemas to support Oracle Fusion Middleware and its components, for design and run-time management of the applications. Oracle SOA Suite mainly uses two components:

  • The Metadata Store (MDS) to store all SCA artifacts
  • The Dehydration Store (SOAINFRA) to persist composite instances and to audit composite instance

Case
Investigating performance issues around purging the Oracle Metadata Repository, I stumbled over the following delete statement that was executed during purging the Oracle Metadata Repository: Read the complete article here.

SOA & BPM Partner Community

For regular information on Oracle SOA Suite become a member in the SOA & BPM Partner Community for registration please visit www.oracle.com/goto/emea/soa (OPN account required) If you need support with your account please contact the Oracle Partner Business Center.

Blog Twitter LinkedIn image[7][2][2][2] Facebook clip_image002[8][4][2][2][2] Wiki

Technorati Tags: SOA Community,Oracle SOA,Oracle BPM,OPN,Jürgen Kress

Performance Study – REST vs SOAP for Mobile Applications by Steven Davelaar



clip_image002Introduction

To build functional and performant mobile apps, the back-end data services need to be optimized for mobile consumption. RESTful web services using JSON as payload format are widely considered as the best architectural choice for integration between mobile apps and back-end systems. Nevertheless, we have seen many customers of Oracle’s Mobile Application Framework (MAF) consuming SOAP web services in their mobile apps. One reason this is happening might be the nice declarative support in MAF/JDeveloper where you can easily create a SOAP-based data control through a wizard and build your pages using drag and drop. However, this wizard is only intended for really simple SOAP services. It cannot handle all XSD types, nor can it handle more complex, nested payloads. One way to work around these limitations is to process the SOAP payload programmatically in Java, but this is not a trivial task to do. While most of the issues around consuming more complex web services can ultimately be solved, this article explains why you should really abandon SOAP and go for REST-JSON services for one simple reason: performance. The differences in performance are staggering and get worse as the mobile device gets older.

Main Article

This articles discusses the results of a test conducted by Oracle’s A-Team to compare the performance of REST-JSON, REST-XML and SOAP service calls in MAF. We will first discuss the test set-up, then discuss the test results and we will end with a discussion of the options you have if you are currently consuming SOAP web services in your MAF application.

Test Set-Up

We have created an ADF Business Components (ADF BC) application that uses the HR schema to return a list of departments, including a nested list of employees for each department. So, the payload returned consists of 27 departments with 107 nested employee records.Each department row has 4 attributes, each employee row has 11 attributes.
In JSON format this payload is 26.2 KB, in XML format the payload is 77.3 KB in size (whitespace and carriage returns have been removed). Read the complete article here.
