BPM 12.2.1.3: Exception when deploying BPM project with Human tasks by Martien van den Akker


This week I deliver a BPM 12c Workshop, that I based on the 12.2.1.3 BPM QuickStart. When the students worked on the lab on Human Workflow, they hit an error deploying the Composite, where in the log you can find something like:

Apparently in the repository of 12.2.1.3 a column is missing in the Workflow Metadata table.
Luckily, I stumbled upon a question in the community.oracle.com forum that hit this ‘bug’ as well; and provided a solution. You need to do an alter table to resolve this:

1

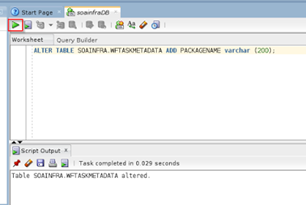

ALTER TABLE SOAINFRA.WFTASKMETADATA ADD PACKAGENAME varchar (200);

The smart guy that provided the answer, used a separate Database UI tool. But fortunately, JDeveloper is perfectly capable to provide you de means as well.
First open the Resource Pallette in JDeveloper. Make sure that you have started your Integrated WebLogic already (since that will run the DerbyDB.
Then in the Resource Pallette, create a new Database Connection: Read the complete article here.
