Loading Data into Oracle Cloud ERP R10 using the new LoadAndImportData operation by Angelo Santagata

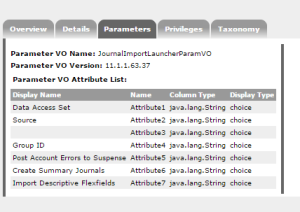

clip_image001



Introduction

As part of Oracle ERP cloud release 10 a new SOAP function has been made available to our customers which greatly simplifies the loading of ERP data using the batch oriented SOAP Services.

This article aims to give the reader, details of this new SOAP Service and how it helps in loading data files into Oracle ERP cloud.

Assuming the input file has been already produced, loading the data into Oracle ERP cloud service is traditionally a multi-step process.

The typical “happy” path is :

  1. 1. Load the file into Oracle Fusion ERP UCM service
  2. 2. Execute the first ESS Job which transfers the file from UCM to the Oracle ERP interface tables
  3. 3. Using a polling technique check to see when the ESS job has finished transferring the file into the interface tables
  4. 4. Execute a second ESS job, which transfers the file from Oracle ERP interface tables to the Oracle ERP data object tables
  5. 5. Use a polling technique to check to see when the file has been processed
    6. Finally execute a call to the downloadESSJobExecutionDetails() operation to download a log file so you can check for success,or any errors, which need dealing with.

Whilst this approach appears attractive, as it allows the developer a great deal of control of the process, in truth this internal processing should be something that the SaaS application [Oracle ERP Cloud] should manage and provide feedback to the developer when things finish

New SOAP method in R10

As of Oracle ERP cloud Release 10 there is a new API called “loadAndImportData“, which is held within the ERPintegrationService, ( https://(FinancialDomain,Financial Common)/publicFinancialCommonErpIntegration/ErpIntegrationService?WSDL). This service has been specifically created to simplify the loading of data into Oracle ERP Cloud service by allowing you the ability to submit a file which is then automatically taken through the various stages of processing within Oracle ERP Cloud, without the user needing to execute each step of the process manually. Read the complete article here.

SOA & BPM Partner Community

For regular information on Oracle SOA Suite become a member in the SOA & BPM Partner Community for registration please visit www.oracle.com/goto/emea/soa (OPN account required) If you need support with your account please contact the Oracle Partner Business Center.

Blog Twitter LinkedIn image[7][2][2][2] Facebook clip_image002[8][4][2][2][2] Wiki

Are you doing SaaS, or EBS, integrations and using Oracle Integration Cloud Service (ICS)? By Angelo Santagata

clip_image002



Are you doing SaaS, or EBS,  integrations and using Oracle Integration Cloud Service (ICS)?

Do you need some inspiration? Well this is your lucky day!

Below you’ll find a collection of ICS Integration videos , produced by our product managers and our UA development team which go though, step by step, how to integrate  two SaaS applications

There are plenty more videos available at the Oracle Help Centre here and read the complete article here.

SOA & BPM Partner Community

For regular information on Oracle SOA Suite become a member in the SOA & BPM Partner Community for registration please visit www.oracle.com/goto/emea/soa (OPN account required) If you need support with your account please contact the Oracle Partner Business Center.

Blog Twitter LinkedIn image[7][2][2][2] Facebook clip_image002[8][4][2][2][2] Wiki

REST Enabling Oracle Fusion Sales Cloud using Java By Angelo Santagata

Oracle Fusion Sales Could (Rel7) currently has a WebServices/SOAP interface however many clients & partners are interested in accessing Oracle Fusion Sales Cloud using REST & JSON. The main difference between a SOAP service and a REST service is the “way” you get access to the data and methods you use. Whilst SOAP is very powerful, very complete and also can be quite complex perhaps over-complex. REST in comparison is rather simple and uses the http verbs (GET,POST,PUT etc) to define the operation and can be as powerful as you desire.
There are many documents on the web which discuss REST vs SOAP but in summary :

SOAP

Originally defined as Simple Object Access Protocol. A protocol specification for exchanging structured information in the implementation of Web Services in computer networks.
An envelope, which defines what is in the message and how to process it A set of encoding rules for expressing instances of application-defined datatypes And a convention for representing procedure calls and responses.
Relies on eXtensible Markup Language (XML) as its message format, and usually relies on other Application Layer protocols (most notably Remote Procedure Call (RPC) and HTTP) for message negotiation and transmission. This XML based protocol consists of three parts:

REST

RESTful web service (also called a RESTful web API) is a simple web service implemented using HTTP and the principles of REST. Such a web service can be thought about as a collection of resources. The definition of such a web service can be thought of as comprising three aspects:
The base URI for the web service, such as http://example.com/resources/
The MIME type of the data supported by the web service. This is often JSON, XML or YAML but can be any other valid MIME type.
The set of operations supported by the web service using HTTP methods (e.g., POST, GET, PUT or DELETE).

References : · http://en.wikipedia.org/wiki/Representational_State_Transfer#RESTful_web_services & · http://en.wikipedia.org/wiki/SOAP
Why would you want to use REST instead of SOAP?
There are many reasons why one would/could want to use REST instead of SOAP, one reasons is that SOAP is considered too heavy-weight for mobile applications, where payload size is critical, and also instead of XML, JSON is the preferred message format.
The JSON message format is also very appropriate when interfacing with systems that use JavaScript (such as browsers or node.js) and hence adds weight to the desire to use REST instead of SOAP for accessing Oracle Fusion Sales Cloud.
So getting to the matter at hand and getting RESTful
So enough of why REST , how does one do it for Oracle Sales Cloud (aka CRM). Thankfully this is rather straightforward, at Oracle OpenWorld 2013 you would have seen Thomas Kurian demonstrate our new Oracle SOA Suite and how it can transform a SOAP service into a REST service whilst this is excellent and incredibly productive some clients dont want to install SOA Suite soley for this purpose. Thankfully its possible to do the same using pure Java and deploy it to a cloud infrastructure, like the newly release Oracle Java Cloud Service. It is however worth noting that using SOA Suite is preferable because it accelerates the deployment tremendously and would ultimately be more "agile".
So what are the basic steps to REST enable a Fusion Sales Cloud Service?

  1. Download and install the Jersey REST libraries, we’ll use these for the creation of the RESTful service
  2. Generate the SOAP Client Side Proxie(s) for Oracle Sales Cloud. In this example we’re using static proxies however for a more industrialized approach Id recommend going down the dynamic proxy route, more flexible and less likely to break at runtime, however at a development cost.
  3. Create "wrapper" JAXB Objects so that you can return XML data. This is needed because the baseline SOAP clients dont have @RootElement (s) defined.
  4. Create the RESTful project and expose the services you require.
  5. Deploy to your runtime Java contain, like the Oracle Java Cloud Service
  6. Consume by your favourite client, like a mobile phone etc

For the purpose of the tutorial (in the document), I’ve documented step by step how you can build the above, query Oracle Fusion Sales Cloud, manage security (for development & production) and how to deploy the code to the Oracle Java Cloud. Obviously take note that this document is more of a tutorial than anything else when building your own custom REST Adaptor you would tailor it specifically to what services your client (mobile phone, javascript widget etc) requires.
Happy reading Material: Document & Template Files & Complete Solution (needs Jersey files downloadable separately)
Note : This document and source code is sample code and assumes no support from Oracle Corporation or myself. Read the complete article here.
